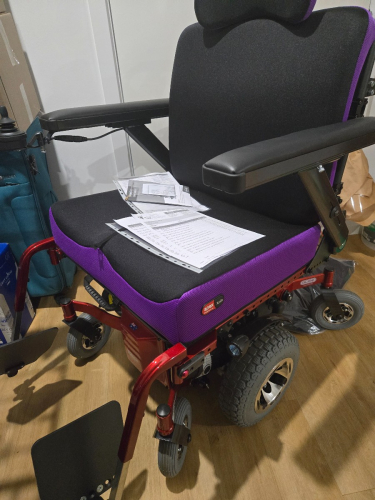

Glide Centro Bariatric Mid Wheel Drive
Description
- Active Pozi-Trak drive system. (APT)APT is a unique suspension system patented by Glide and was developed to enhance the performance of its latest Mid Wheel Drive wheelchair.
- The APT system is a three-functional operation which increases traction on the Drive Wheels, aids with Kerb Climbing and acts as an anti-pitch device.
- The suspension system also eliminates nose-dive when descending roadside kerbs.
- The drive wheels are set positive, meaning when the wheelchair is on a level ground, a preload of up to 20kg (depending on spring set-up type) is on each drive wheel.
- This unique system greatly improves traction for driving and braking.
- It also performs extremely well in emergency downhill braking.
- This system is a very low-maintenance system and has eliminated the need for complex moving parts that need constant servicing or adjustments.
- Additionally, with the combination of varying spring setups, your wheelchair can be fine-tuned to suit your driving preference.
- e.g. Biased for more traction or increased kerb climbing ability.
- Video of the APT system in use at the bottom of this page.
- SAFETY – Full compliance AS 3695 – 250kg.
- Crash tested to AS 3696:19 to a Max user weight of 159kg.
- Power Base type with easily removable seating module.
- 50-degree seat tilt standard.
- Available in Adult and Paediatric versions.
- Motors – High quality German motors - 4 Pole, High torque.
- Low seat height standard (46cm at 0 degrees).
- Optional lower seat height 43cm.
- 70 – 90 amp/hr Battery capabilities. (Amp/hr ratings vary between Battery brands)
- Vehicle tie-down points.
- Low maintenance with easily accessible electronics.
- Turn Circle between walls 1145mm (Average set-up 46cm SD x 46cm SW).
- 80mm kerb climbing ability.
- 80mm Ground clearance.
- Max Ramp Incline/Decline 10°
- Glide’s all-new seating system for Centro.
- Compatibility with most Proprietary Seating systems on the market.
- Plus all the standard options offered with our range.
- Max Recommended User Weight
- 250kg AS 3695 Full compliance – Class B Indoor/Outdoor
- Wheelchair Weight
- 85kg (without batteries and upholstery)
- Operational Weight
- Typical operational wheelchair weight 132kg – 150kg *
- Rear Castors
- 7 ” pneumatic (optional 8″)
- Front Castors
- 200 -50 (8″) pneumatic or solid
- Drive Wheels
- 12″ wide
- Suspension
- APT
- Overall Length
- 900mm (foot plate removed)
- Overall Width
- 620mm (wheel base)
- Seat Width
- 49, 52, 55, 58, 61, 64, 67, 70, 73cm
- Seat Depth
- 40, 43, 46, 49, 52, 55, 58cm (sizes 61, 64, 67cm not available with power recline)
- Seat Height
- 46cm (top of rail using 0-46 set up)
- Back Height
- 1030mm Top of push handle (custom height available)
- Seat Tilt
- 4-50 std (optional 0-46 degree)
- Arm Rests
- Flip up (adjustable)
- Leg Rests
- Swing away detachable
- Frame Colour
- Choose from the Glide range of colours
- Brakes
- Electronic and manual park
- Max Ramp
- 10° Incline /Decline
- Controls

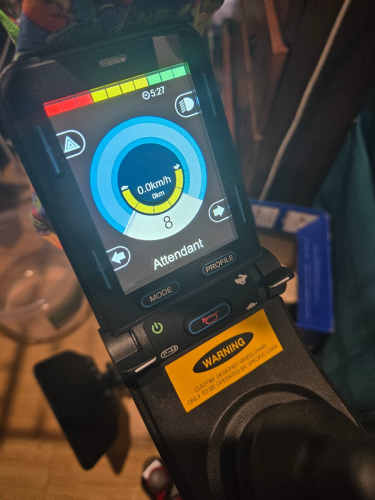

- R-net LCD std
- Battery
- 70-90 amp/hr (260Lx170Wx220H) Sealed
- Range
- 40 km max with 70 amp/hr
- Note: Total weight of the wheelchair will depend on the width, the type of Batteries fitted, and the accessories added
Location
Strathtulloh VIC, Australia
